Portable Heavy Vehicle Hoists

The Portalift is Endurequip’s highly capable, highly reliable, heavy vehicle hoist. Designed to make heavy vehicle maintenance safe and convenient, the Portalift is the go-to for Australian transport companies, logistics providers, military divisions and other organisations that need to maintain and service heavy duty vehicles.

Designed to exacting standards, Portalift Heavy Vehicle Hoists offers a lifting system that is simple to operate and allows complete underbody access for fast and efficient maintenance for your fleet. Our hoists are durable, quality-made, and above all, safe.

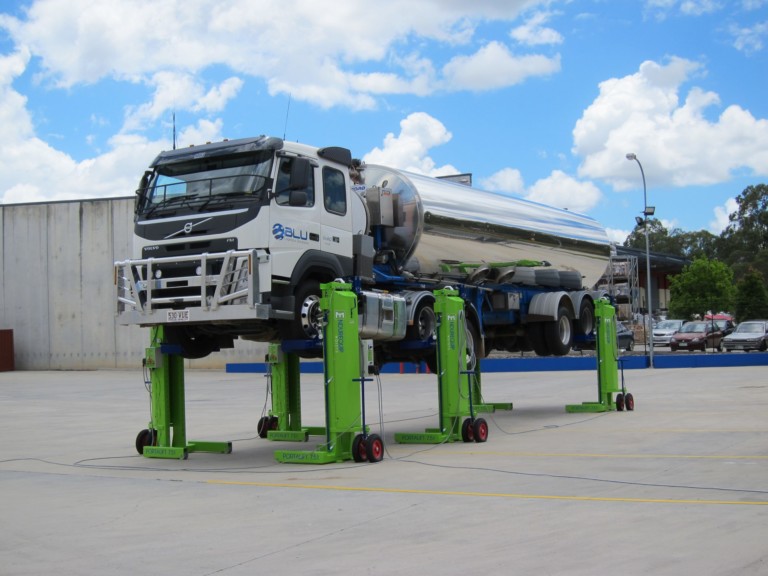

The Portalift Hoist is suitable for use with a range of different vehicles, from public transport and military vehicles to rail and special vehicles. Each hoist is capable of lifting loads up to 7.5 tonnes. Combining posts into 4, 6, 8 and 10 increase the lift capacity to up to 75 tonnes with total reliability.

All solutions in the Endurequip range are Australian made. This means the team controls the complete design, manufacturing and commissioning process, ensuring quality at every stage.

Portable Vehicle Hoists Specifications
Demonstration Video
Lifting system
Electro Mechanical
Lifting capacity per hoist
7.5 tonnes
Maximum lifting capacity - set of 4 hoists
30 tonnes
Maximum lifting capacity - set of 6 hoists
45 tonnes
Maximum lifting capacity - set of 8 hoists
60 tonnes
Maximum lifting height
1600 mm
Lifting/lowering time
2 minutes 25 seconds
Tyre pressure
172 kPa
Tyre size and type
4.80/400 8 4 ply rating pneumatic
Duty cycle 1
100%
Wheel fork capacity
All current bus, coach and truck tyres in general use
Small wheel adaptors
575 mm to 775 mm
Special application wheel adaptors
Low profile types
Levelling screw size
24 mm x 90 mm
Column length, including steering wheel
1390 mm
Column width
1072 mm
Column height
2480 mm

Proudly

Australian

Designed and built in Australia for over 30 years for Australian conditions

From Concept

to Completion

From concept to completion, so you can foxus on your business and customers.

Built for a

Modern Army

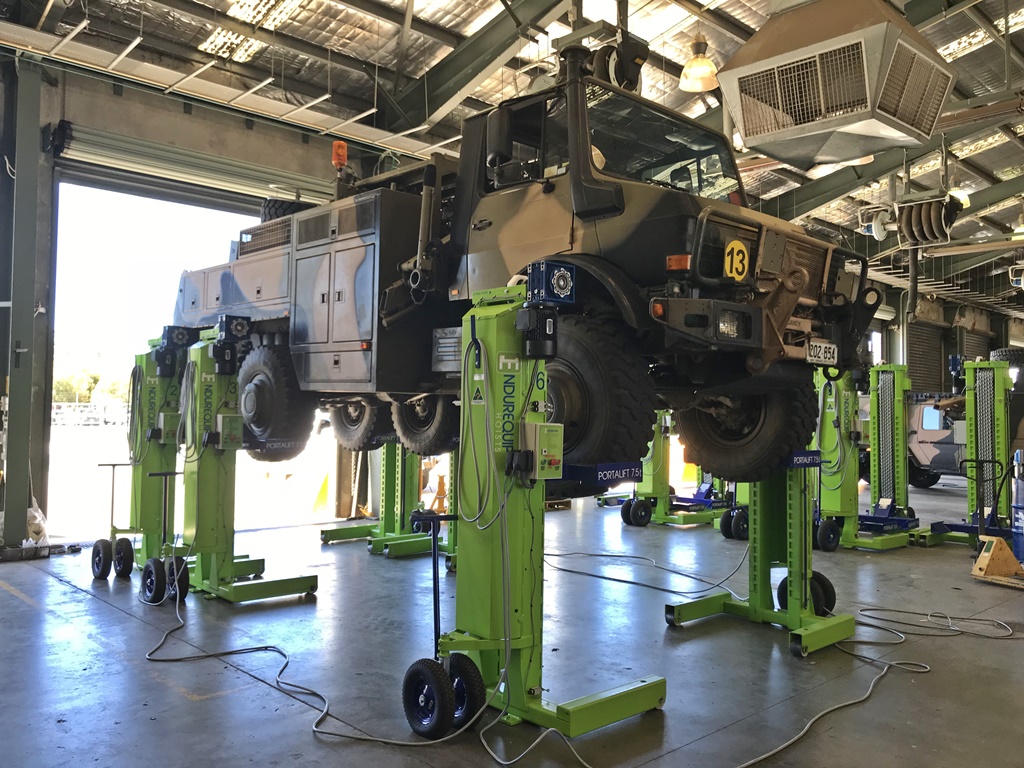

Endurequip is the exclusive supplier of hoists to the Australian Defence Force.

Lifetime

Warranty

We are confident in the quality of our products to offer a Lifetime Manufacturers Warranty
